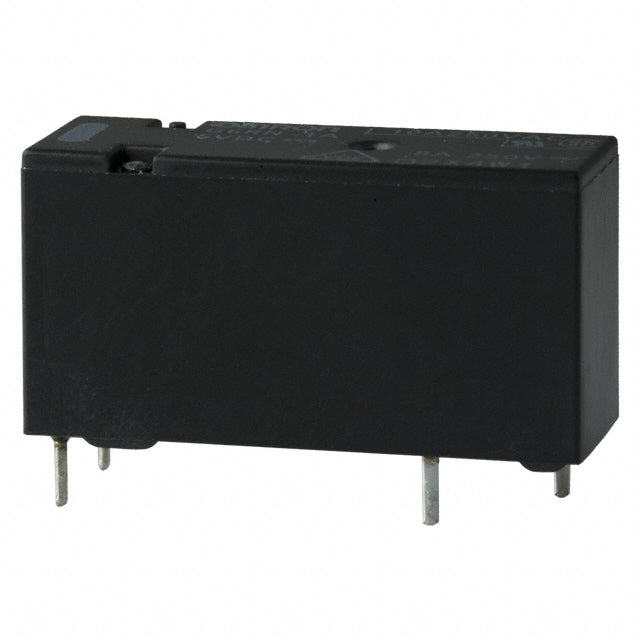

OMRON Power Relays-G6RN-1 DC5

Description

Coil Voltage;5V/Contact Form;One set changeover: 1C (SPDT - changeover)/Number of Pins;5/Contact Rating;8A@250VAC;5A@30VDC/Switching Voltage(Max);250V@AC;30V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver alloy+gold plating/Coil Rated Power;220mW/Coil Resistance;114Ω/Switching Current(Max);8A/Operate Time;15ms/Release Time;5ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+85℃


Power Relay 1 Form C: 1C (SPDT-CO) 5V Coil Through Hole,10x28.5mm

Product form

Coil Voltage;5V/Contact Form;One set changeover: 1C (SPDT - changeover)/Number of Pins;5/Contact Rating;8A@250VAC;5A@30VDC/Switching Voltage(Max);250V@AC;30V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver alloy+gold plating/Coil... Read more

$2.35 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Coil Voltage;5V/Contact Form;One set changeover: 1C (SPDT - changeover)/Number of Pins;5/Contact Rating;8A@250VAC;5A@30VDC/Switching Voltage(Max);250V@AC;30V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver alloy+gold plating/Coil Rated Power;220mW/Coil Resistance;114Ω/Switching Current(Max);8A/Operate Time;15ms/Release Time;5ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+85℃


    Power Relay 1 Form C: 1C (SPDT-CO) 5V Coil Through Hole,10x28.5mm
