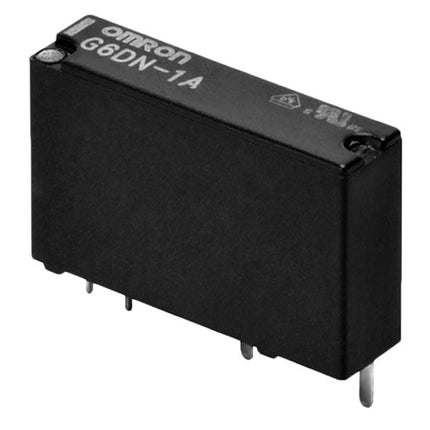

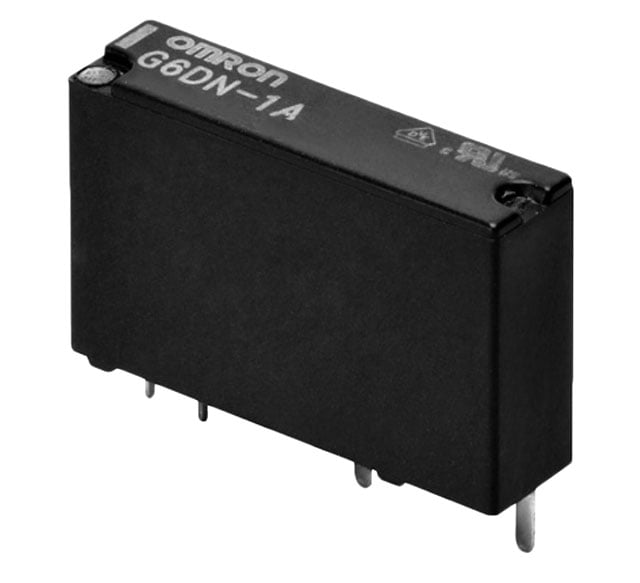

OMRON Power Relays-G6DN-1A-SL DC24

Description

Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Number of Pins;4/Contact Rating;5A@250VAC;5A@30VDC/Switching Voltage(Max);277V@AC;125V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver alloy+gold plating/Coil Rated Power;110mW/Coil Resistance;5.236kΩ/Switching Current(Max);5A/Operate Time;10ms/Release Time;5ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+90℃


Power Relay 1 Form A: 1A (SPST-NO) 24V Coil DIP,5.08x20mm

Product form

Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Number of Pins;4/Contact Rating;5A@250VAC;5A@30VDC/Switching Voltage(Max);277V@AC;125V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver alloy+gold plating/Coil... Read more

$1.60 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Number of Pins;4/Contact Rating;5A@250VAC;5A@30VDC/Switching Voltage(Max);277V@AC;125V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver alloy+gold plating/Coil Rated Power;110mW/Coil Resistance;5.236kΩ/Switching Current(Max);5A/Operate Time;10ms/Release Time;5ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+90℃


    Power Relay 1 Form A: 1A (SPST-NO) 24V Coil DIP,5.08x20mm
