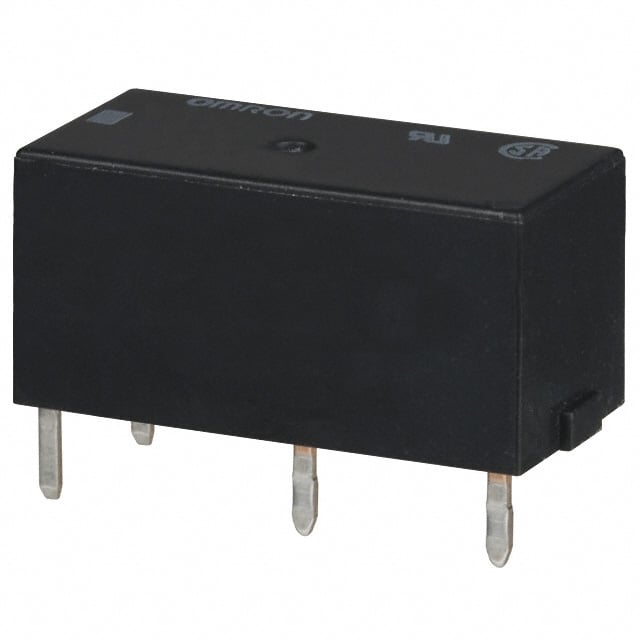

OMRON Power Relays-G6B-2114P-US DC24

Description

Coil Voltage;24V/Contact Form;1 Form A + 1 Form B: 1A + 1B (SPST-NO + SPST-NC)/Contact Rating;5A@250VAC/Switching Voltage(Max);380V@AC;125V@DC/Contact Material;Silver Alloy (Cd-Free)/Coil Rated Power;200mW/Coil Resistance;1.92kΩ/Switching Current(Max);5A/Operate Time;10ms/Release Time;10ms/Contact Resistance;30mΩ/Operating Temperature;-25℃~+70℃


24V 5A 5A@250VAC 1 Form A + 1 Form B: 1A + 1B (SPST-NO + SPST-NC) DIP,19.9x10.9mm Power Relays RoHS

Product form

Coil Voltage;24V/Contact Form;1 Form A + 1 Form B: 1A + 1B (SPST-NO + SPST-NC)/Contact Rating;5A@250VAC/Switching Voltage(Max);380V@AC;125V@DC/Contact Material;Silver Alloy (Cd-Free)/Coil... Read more

$2.96 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Coil Voltage;24V/Contact Form;1 Form A + 1 Form B: 1A + 1B (SPST-NO + SPST-NC)/Contact Rating;5A@250VAC/Switching Voltage(Max);380V@AC;125V@DC/Contact Material;Silver Alloy (Cd-Free)/Coil Rated Power;200mW/Coil Resistance;1.92kΩ/Switching Current(Max);5A/Operate Time;10ms/Release Time;10ms/Contact Resistance;30mΩ/Operating Temperature;-25℃~+70℃


    24V 5A 5A@250VAC 1 Form A + 1 Form B: 1A + 1B (SPST-NO + SPST-NC) DIP,19.9x10.9mm Power Relays RoHS
