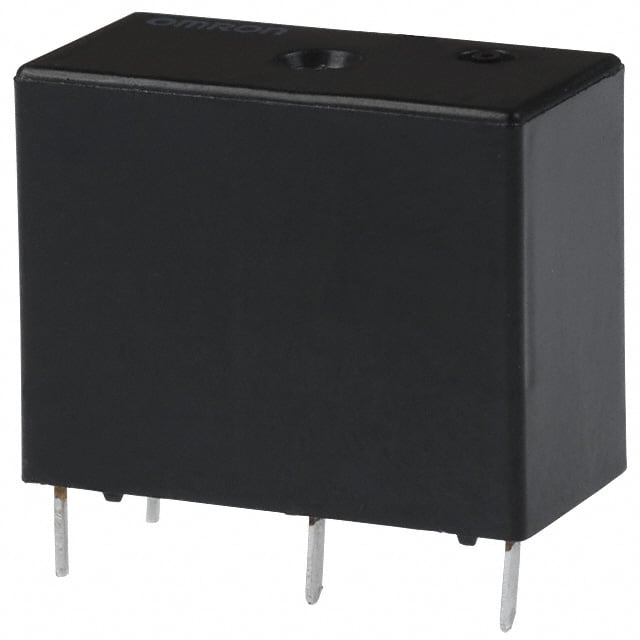

OMRON Power Relays-G5Q-1A4 DC24

Description

Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Number of Pins;4/Contact Rating;5A@30VDC;10A@250VAC/Switching Voltage(Max);277V@AC;30V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver Alloy (Cd-Free)/Coil Rated Power;200mW/Coil Resistance;2.88kΩ/Switching Current(Max);10A/Operate Time;10ms/Release Time;5ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+105℃


Power Relay 1 Form A: 1A (SPST-NO) 24V Coil Through Hole,10x20mm

Product form

Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Number of Pins;4/Contact Rating;5A@30VDC;10A@250VAC/Switching Voltage(Max);277V@AC;30V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver Alloy (Cd-Free)/Coil... Read more

$1.29 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    Description

    Coil Voltage;24V/Contact Form;1 Set Normally Open: 1A (SPST NO)/Number of Pins;4/Contact Rating;5A@30VDC;10A@250VAC/Switching Voltage(Max);277V@AC;30V@DC/Coil Type;Non-Polarized - Single Coil/Contact Material;Silver Alloy (Cd-Free)/Coil Rated Power;200mW/Coil Resistance;2.88kΩ/Switching Current(Max);10A/Operate Time;10ms/Release Time;5ms/Contact Resistance;100mΩ/Operating Temperature;-40℃~+105℃


    Power Relay 1 Form A: 1A (SPST-NO) 24V Coil Through Hole,10x20mm
